DIMENSIONS & WEIGHTS
Wedge:
- Total height: 77.5 mm
- Base diameter: 58.8mm
-
Net weight: 0.70 pounds (318.2 g)
-
Maximum load: 11 lbs (5 kg)
- Arca Swiss Plate: Included
- Screw Hole on the bottom: 3/8 Screw Hole
GENERAL TECHNICAL DATA
-
Color: Black
-
Material: CNC-Milled Aluminum Alloy
-
Tilting Adjustment: 0°-60°
-
Compatibility: Any Rig with ARCA Swiss on the Bottom, for example, MSM Rotator, MSM NOMAD, Seestar S30, Seestar S50, Dwarf 2, Dwarf 3 and so on.
Panning Base
Diameter of the base: 60mm
Height:19mm
Weight: 13.5g
Scale markings:
-
Each major gap represents 15°
-
Each minor mark represents 2.5° (15° divided into 6 equal parts)
The adjustment knob of the panning base extends slightly below the base, so it may not be compatible with tripods that have a large, flat mounting surface, as the knob could come into contact with the tripod.
Description of Wedge

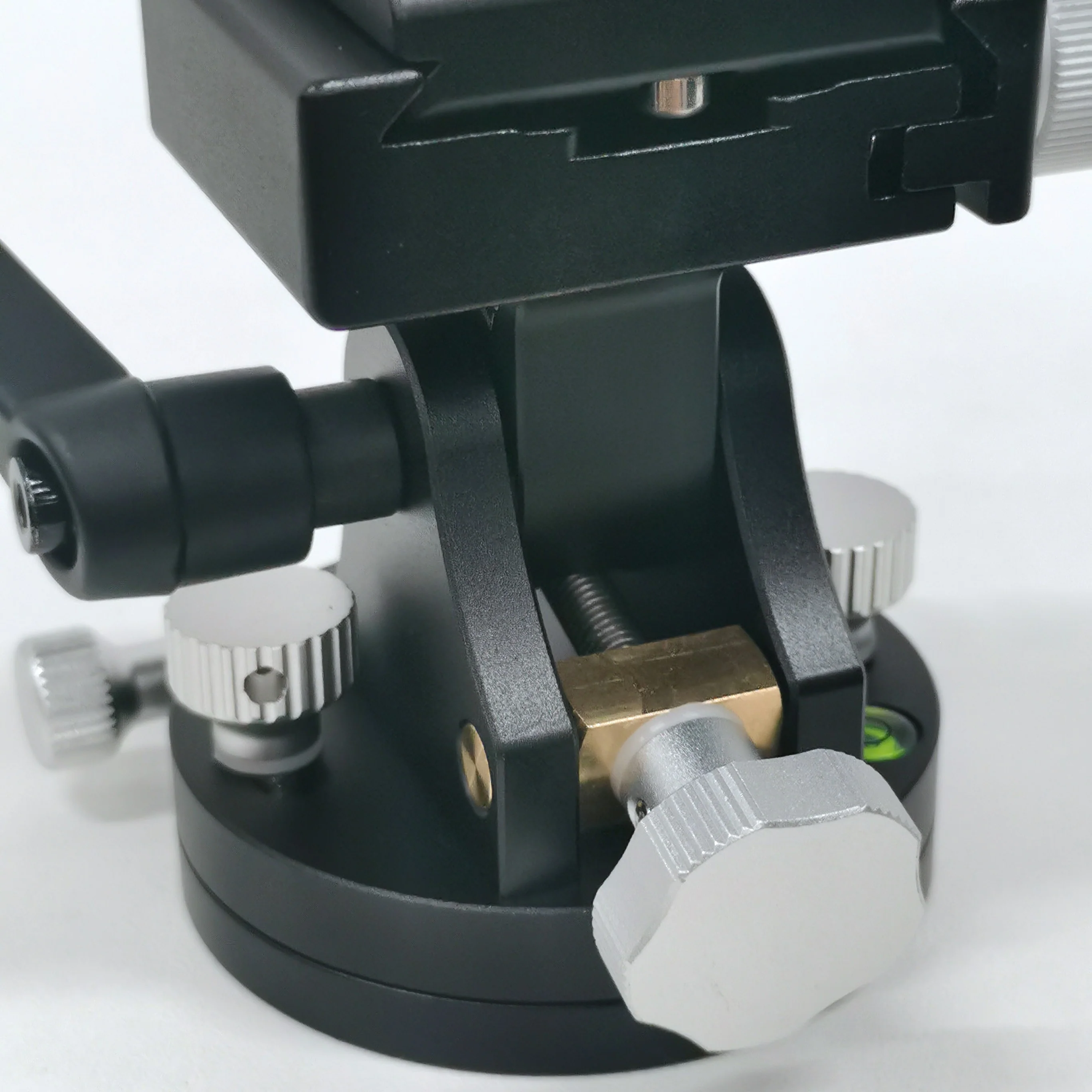

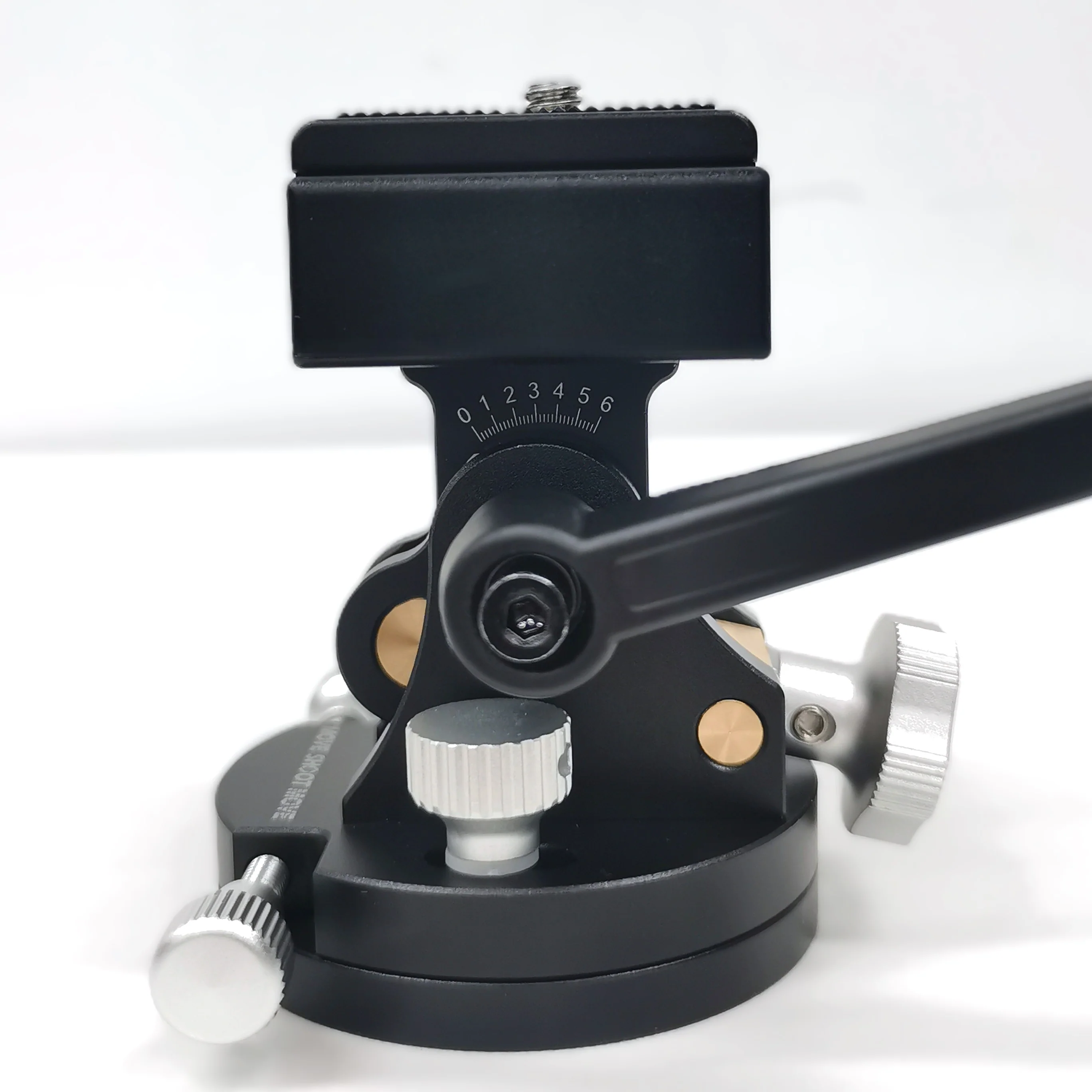

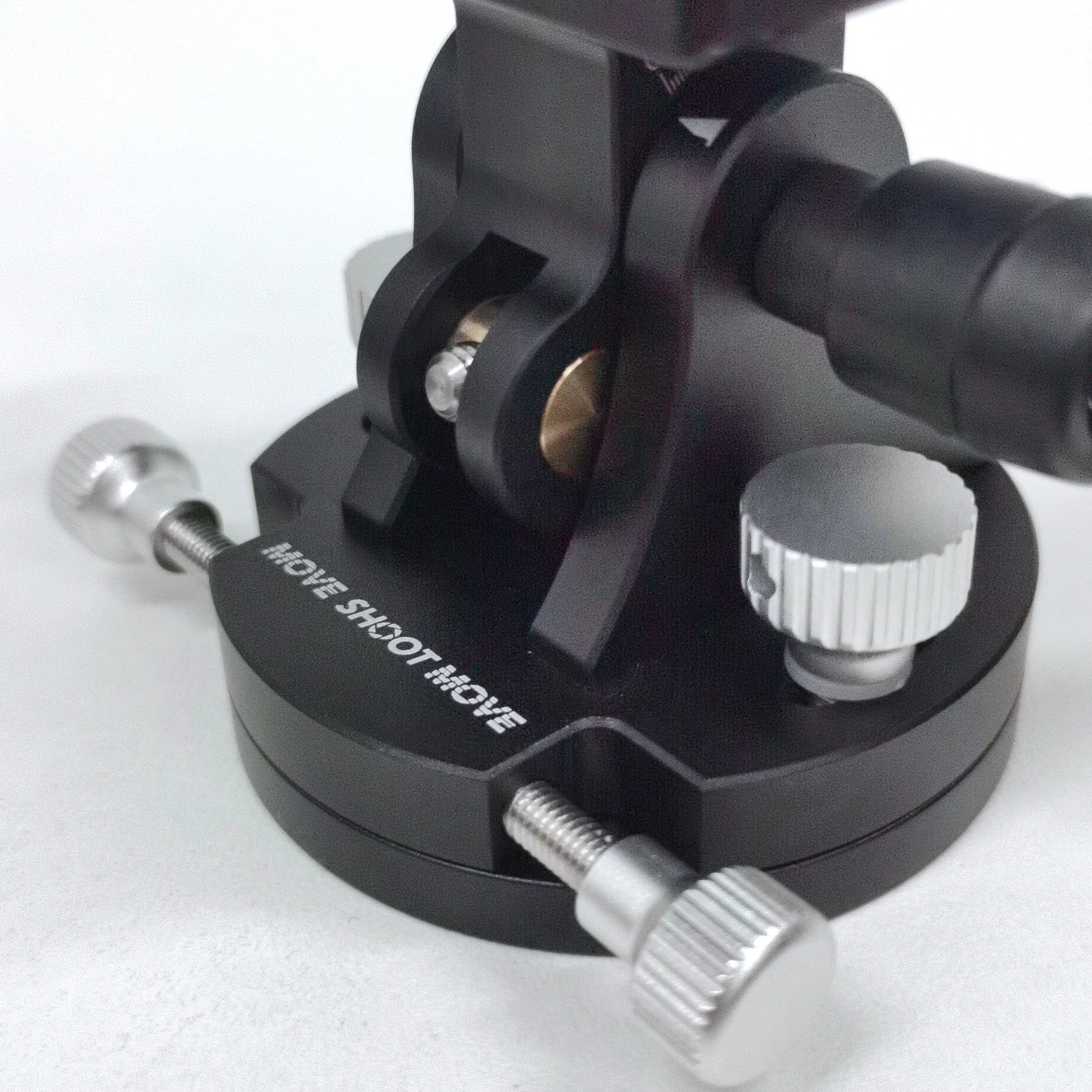

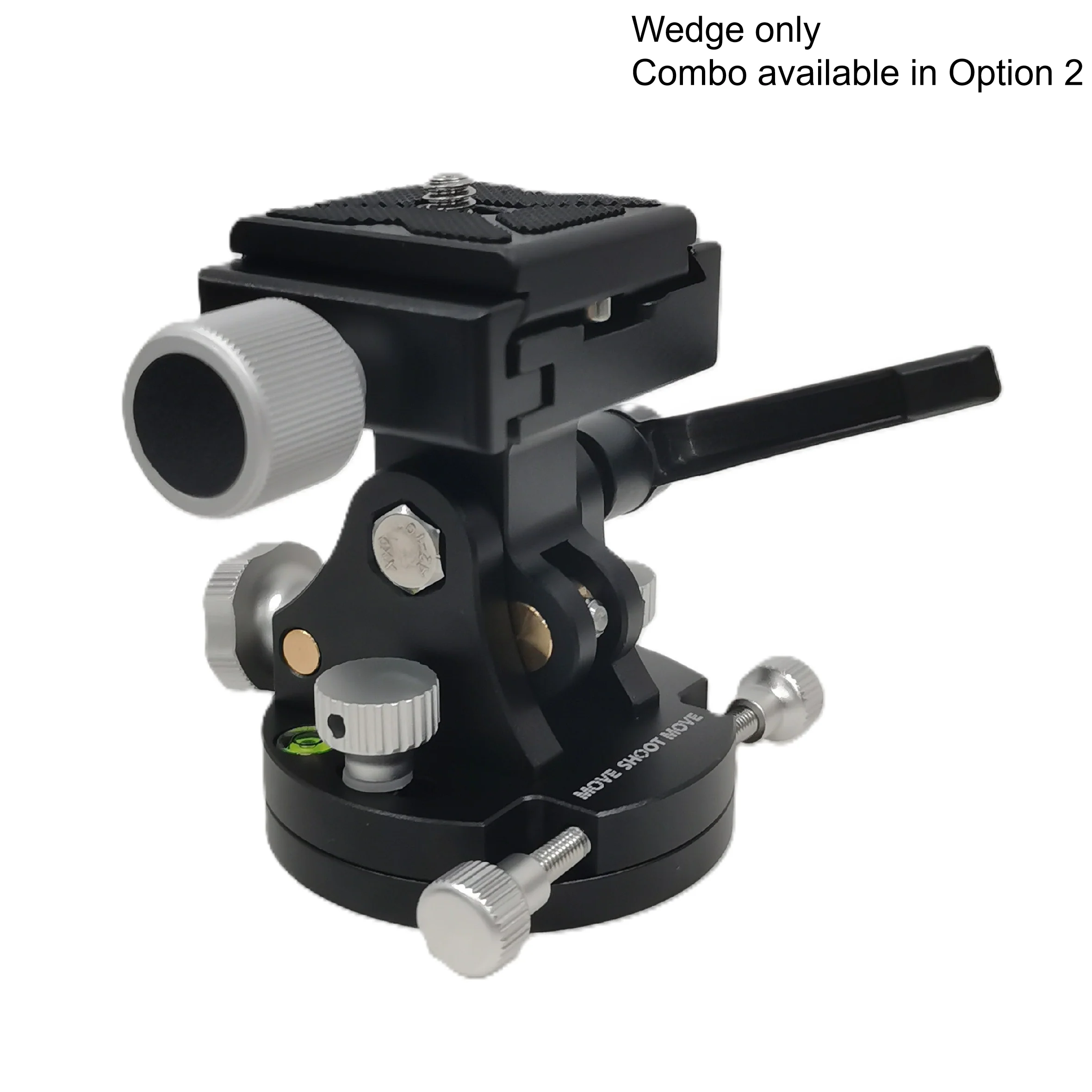

The MSM Wedge is designed for precise polar alignment, similar to a ballhead but with finer adjustment capabilities. It features four knobs and one handle, for multi-directional adjustments, allowing you to set your tracker or camera at various angles. On top of the Quick-Release Plate has a standard 1/4"-20 threaded screw so that you can attach anything with a 1/4"-20 threaded screw upon it.
How to set up NOMAD with MSM wedge:
How to use it?
-
Knob A Lock or Unlock the Quick-Release Plate on the top
-
Knob B & Handle:
-
Knob B controls the altitude adjustment.
-
Handle Turn the handle toward Knob B to tighten and stabilize the altitude adjustment mechanism. In this state, the Wedge remains firmly supported while Knob B can still be used for fine altitude adjustment.
Turn the handle in the opposite direction to loosen the mechanism for broader adjustment.
The handle can also be pulled outward to reposition its operating angle for easier use. Repositioning the handle will not affect the current tightened or loosened status.
-
-
Knob C & Knob D adjust the azimuth for precise left and right movements in tiny increments.
- Knob E Factory screw for base connection only, no user function

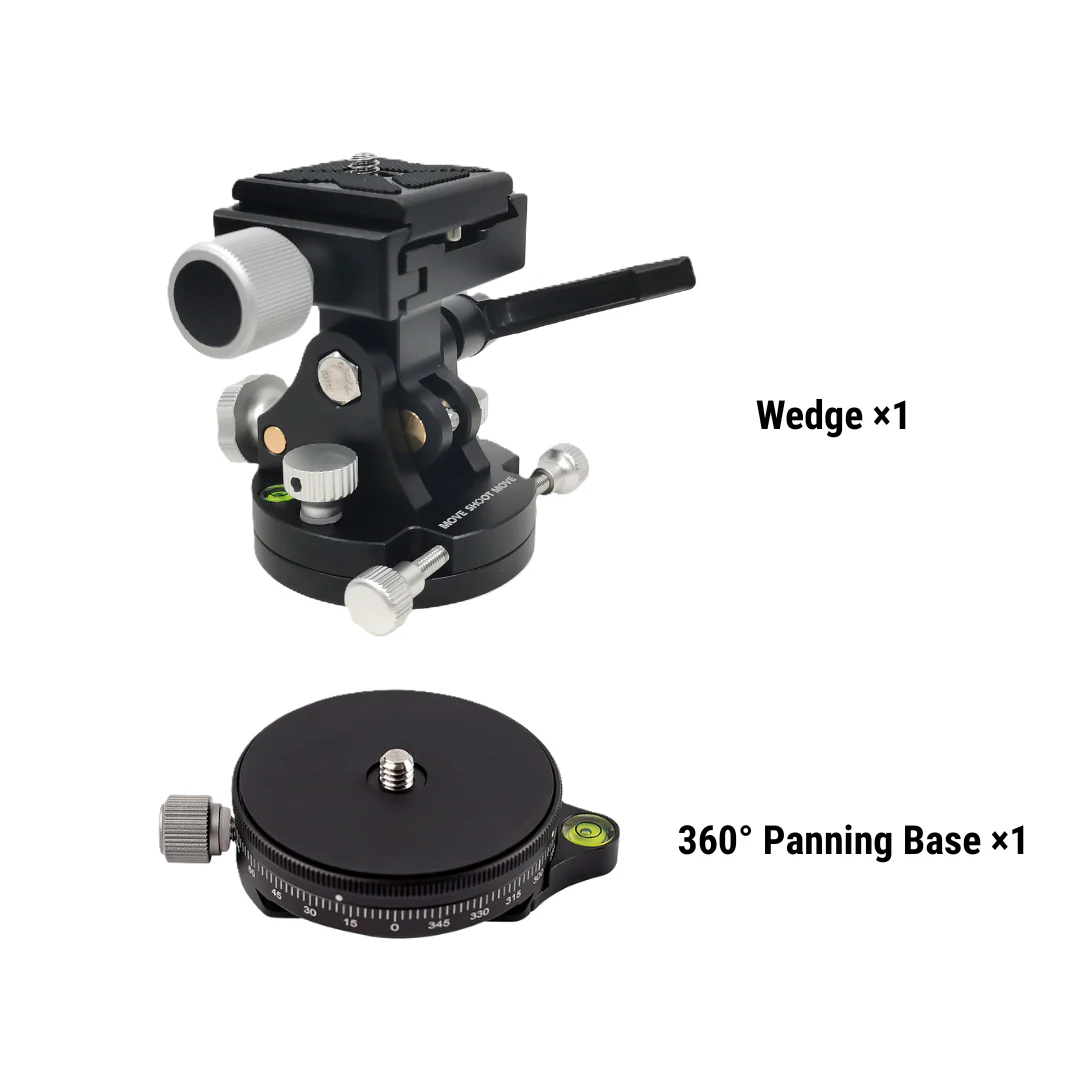

Wedge + Panning Base. Why this combo?
-
The panning base lets you rotate your gear freely in any direction without moving the tripod—perfect for quick setup, especially in unfamiliar locations.
-
The wedge provides fine-tuned, precise adjustments, making polar alignment smoother and more accurate.
-
Together, they simplify both coarse and fine alignment, saving you time and effort in the field.

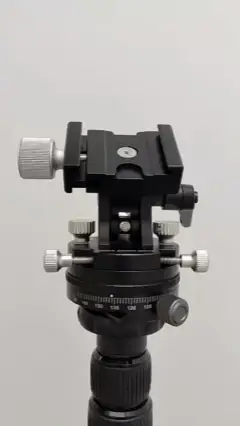

How to use Panning Base with Wedge?
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
